Overview

This documentation explains how to set up TradingView alerts to work with the MT5 Bridge. The system allows you to execute trades directly from TradingView alerts to your MetaTrader 5 platform.

You need an active API key to use the webhook service. Generate one from your client portal.

How It Works

  1. Create a strategy or indicator in TradingView
  2. Set up alerts with webhook URLs
  3. TradingView sends HTTP POST requests to our webhook
  4. The bridge processes the request and sends commands to MT5
  5. MT5 executes the trades based on your strategy

Key Features

Fast Execution

Execute trades directly from TradingView alerts to your MT5 platform in milliseconds.

Secure Connection

API key authentication ensures only authorized signals are processed by your account.

Multiple Order Types

Support for market, limit, stop orders with stop loss and take profit parameters.

Magic Number Filtering

Use magic numbers to identify and manage specific groups of orders efficiently.

Webhook Setup in TradingView

1

Get Your Webhook URL

Your webhook URL is available in the client portal. It looks like this:

https://www.connect-tradingview/tradingview-webhook.php?api_key=YOUR_API_KEY
2

Create an Alert in TradingView

  1. Go to your TradingView chart
  2. Create an alert on your indicator or strategy

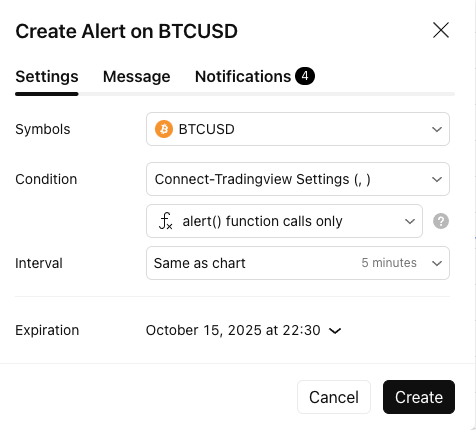

    TradingView Alert Creation

    Creating an alert in TradingView

  3. In the alert settings, select "Webhook URL"
  4. Paste your webhook URL

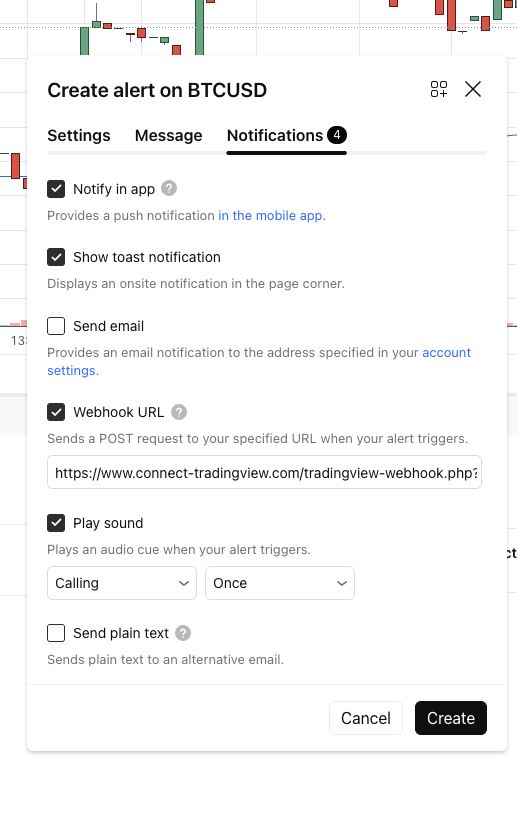

    TradingView Webhook Configuration

    Configuring webhook URL in TradingView

Make sure to select "Once Per Bar Close" if you're using close prices to avoid duplicate orders.
3

Test Your Alert

You can test your webhook connection using the test tool in the client portal or by manually sending a request:

curl -X POST https://yourdomain.com/tradingview-webhook.php?api_key=YOUR_API_KEY \
  -H "Content-Type: application/json" \
  -d '{"action":"buy","symbol":"EURUSD","price":1.0850,"volume":0.1}'

JSON Message Format

TradingView alerts should send JSON-formatted messages. Below are the supported fields and formats.

Basic Order Fields

Field Required Description Example
webhook_id Yes Signal Authentication "28467515"
action Yes Trade action: buy, sell, closelong, closeshort "buy"
symbol Yes Symbol to trade "EURUSD"
price No Entry price (market order if omitted) 1.0850
volume No* Trade volume (default: 0.1) 0.1
sl No Stop loss price 1.0800
tp No Take profit price 1.0900
comment No Order comment "EMA crossover"
magic No Magic number for order identification 12345

* Volume is required for buy/sell actions, not for close actions. Default is 0.1 if not specified.

Buy Order Example

{
    "webhook_id": "5039858790",
    "action": "buy",
    "symbol": "EURUSD",
    "price": "{{close}}",
    "volume": 0.1,
    "sl": 1.0800,
    "tp": 1.0900,
    "comment": "EMA crossover buy",
    "magic": 12345
}

Sell Order Example

{
    "webhook_id": "5039858790",
    "action": "sell",
    "symbol": "EURUSD",
    "price": "{{close}}",
    "volume": 0.1,
    "sl": 1.0900,
    "tp": 1.0800,
    "comment": "Overbought sell",
    "magic": 12345
}

TradingView Pine Script Syntax

Below is an example Pine Script strategy that can be used with the webhook bridge.

//@version=5
strategy("MT5 Webhook Strategy", overlay=true, margin_long=100, margin_short=100)

// Input parameters
webhook_id = input.string("your_api_key", title="Webhook ID")
fast_length = input(title="Fast MA Length", defval=20)
slow_length = input(title="Slow MA Length", defval=60)

// Calculate indicators
fast_ma = ta.sma(close, fast_length)
slow_ma = ta.sma(close, slow_length)

// Trading logic
long_condition = ta.crossover(fast_ma, slow_ma)
short_condition = ta.crossunder(fast_ma, slow_ma)

if (long_condition)
    strategy.entry("Long", strategy.long)
    alert_message = '{ "webhook_id": "' + your_api_key + '", "action": "buy", "symbol": "' + syminfo.ticker + '", "price": "' + str.tostring(close) + '", "volume": 0.1, "magic": 12345 }'
    alert(alert_message, alert.freq_once_per_bar_close)

if (short_condition)
    strategy.entry("Short", strategy.short)
    alert_message = '{ "webhook_id": "' + your_api_key + '", "action": "sell", "symbol": "' + syminfo.ticker + '", "price": "' + str.tostring(close) + '", "volume": 0.1, "magic": 12345 }'
    alert(alert_message, alert.freq_once_per_bar_close)

// Plot indicators
plot(fast_ma, color=color.blue, linewidth=2)
plot(slow_ma, color=color.red, linewidth=2)

Full TradingView Syntax (Buy - Sell - CloseLong - CloseShort) Send Test Alert


//@version=6
strategy("Connect-Tradingview Settings", overlay=true)


var pc_risk = 0.0
var comment = 0.0
var magic = 0.0
var price = 0.0

var longStop = 0.0
var longTarget = 0.0
var shortStop =0.0
var shortTarget = 0.0



// Connect-Tradingview Settings
pc_prefix = input.string(title = 'MetaTrader Prefix', defval = '', group = 'Connect-Tradingview Settings', tooltip = 'This is your broker\'s MetaTrader symbol prefix')
pc_suffix = input.string(title = 'MetaTrader Suffix', defval = '', group = 'Connect-Tradingview Settings', tooltip = 'This is your broker\'s MetaTrader symbol suffix')

// Generate Connect-Tradingview alert string
var symbol = pc_prefix + syminfo.ticker + pc_suffix


pc_entry_alert(direction, price, sl, tp, risk, comment) =>
     '{"webhook_id":41183075121,"action":"' + direction + '" , "symbol": "' + syminfo.ticker + '", "price": ' + str.tostring(close) + ', "sl": ' + str.tostring(sl) + ', "tp": ' + str.tostring(tp) + ', "volume": ' + str.tostring(risk) + ', "magic": ' + str.tostring(timeframe.period) +', "comment": "2vSuperTrend' + str.tostring(timeframe.period) + '_' + str.tostring(lab_1) + '", "strategy": "2vSuperTrend"}'


//============================= Conditions ======================================================================================
longCondition = close > 0.0
shortCondition = close < 0

//===============================long And Short Implementing======================================================================
if longCondition

    pc_risk := 3.50
    longStop := close - syminfo.mintick * 20000
    longTarget := close + syminfo.mintick * 50 //250
    alert_string = pc_entry_alert('buy', price, longStop, longTarget, pc_risk, comment)
    alert(alert_string, alert.freq_once_per_bar_close)
    strategy.entry('Long', strategy.long, qty = 350000)


if shortCondition

    pc_risk := 3.50
    shortStop := close + syminfo.mintick * 20000
    shortTarget := close - syminfo.mintick * 50 //250
    alert_string = pc_entry_alert('sell', price, shortStop, shortTarget, pc_risk, comment)
    alert(alert_string, alert.freq_once_per_bar_close)
    strategy.entry('Short', strategy.short, qty = 350000)




//===================== CLOSE Long And Short Implementing ===========================================================================
var symbol_1 = pc_prefix + syminfo.ticker + pc_suffix


pc_entry_alert_1(direction, magic) =>
    '{"webhook_id":25544074331, "action":"' + direction + '" , "symbol": "' + syminfo.ticker + '", "magic": ' + str.tostring(timeframe.period) +'}'


//Your CloseShort Conditions And CloseLong Conditions

if close > 0.0
    alert_string = pc_entry_alert_1('closelong', magic)
    alert(alert_string, alert.freq_once_per_bar_close)
    strategy.close('Long')




if close < 0.0
    alert_string = pc_entry_alert_1('closeshort', magic )
    alert(alert_string, alert.freq_once_per_bar_close)
    strategy.close('Short')

//======================================================
strategy.exit(id = 'Long Exit', from_entry = 'Long', limit = longTarget, stop = longStop)
strategy.exit(id = 'Short Exit', from_entry = 'Short', limit = shortTarget, stop = shortStop)

Close long Positions Script Filter By Magic Number

//@version=5
strategy("Close long Positions", overlay=true)

// Input parameter
closeLong = input.bool(false, title="Close long Positions")

if (closeLong)
    alert_message = '{"webhook_id":25544074331, "action":"closelong" , "symbol": "' + syminfo.ticker + '", "magic": ' + str.tostring(timeframe.period) +'}'
    alert(alert_message, alert.freq_once_per_bar_close)

Close short Positions Script Filter By Magic Number

//@version=5
strategy("Close short Positions", overlay=true)

// Input parameter
closeShort = input.bool(false, title="Close Short Positions")

if (closeShort)
    alert_message = '{ "webhook_id":25544074331, "action":"closeshort" , "symbol": "' + syminfo.ticker + '", "magic": ' + str.tostring(timeframe.period) +'}'
    strategy.close_all()
    alert(alert_message, alert.freq_once_per_bar_close)
Replace "YOUR_WEBHOOK_ID" with your actual your_api_key from the client portal.

MT5 Expert Advisor

Download the MT5 Expert Advisor to connect your MetaTrader 5 platform with our TradingView bridge.

MT5 Expert Advisor (EA)

Version: 4.1.3 | Format: EX5

This EA must be installed in your MetaTrader 5 platform to receive TradingView alerts.

Download MT5 EA.v4

Secure direct download with no pop-ups

Secure download: Your files are protected through our encrypted connection.

1

Configure MT5 to Allow WebRequests

Before using the webhook bridge, you need to configure MT5 to allow web requests to the bridge URL.

Steps:

  1. Open MT5 and go to Tools → Options
  2. Select the Expert Advisors tab
  3. Check "Allow WebRequest for listed URL"
  4. Add the following URL to the list: https://www.connect-tradingview.com/tradingview-webhook.php
  5. Click OK to save the settings

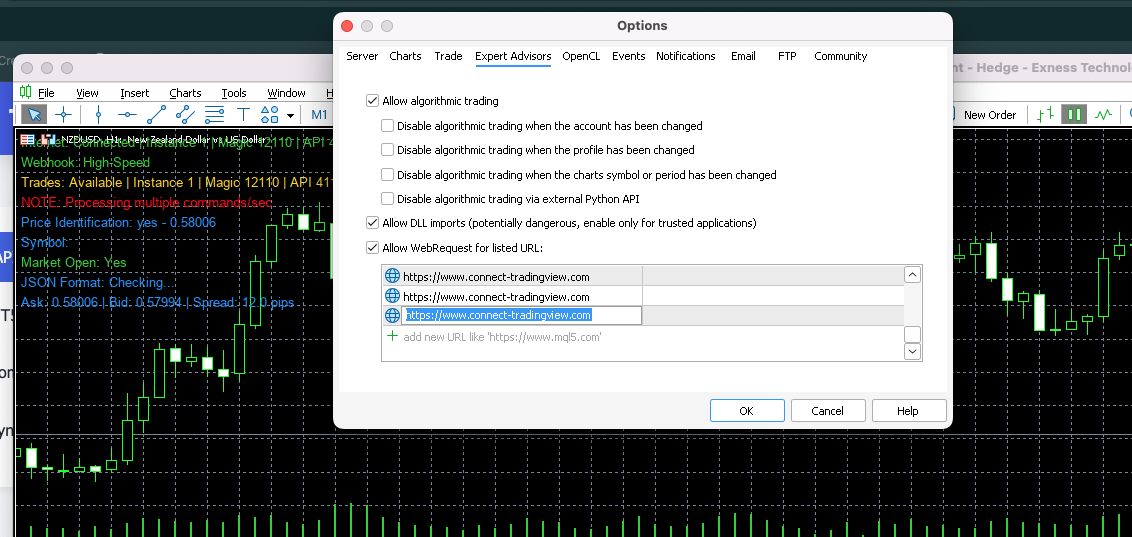

MT5 WebRequest Configuration

MT5 Options showing WebRequest configuration

MT5 EA Configuration

The Expert Advisor (EA) in MT5 needs to be configured with the following parameters to work with the webhook bridge.

MT5 EA Input Parameters

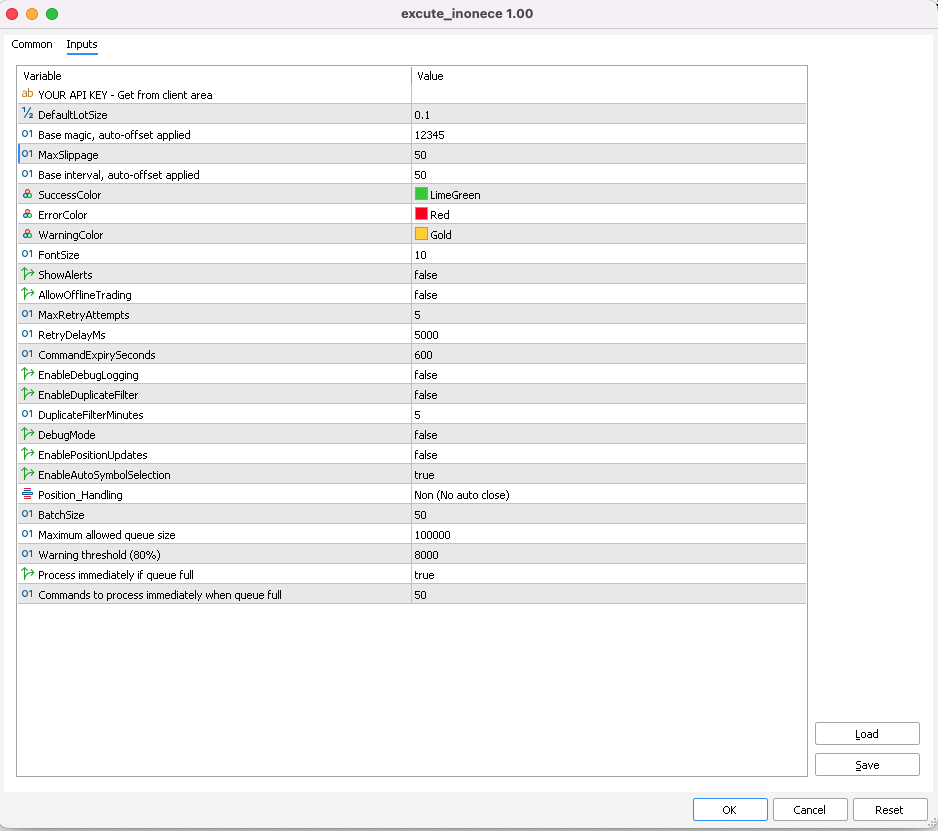

MT5 EA Configuration

MT5 Expert Advisor configuration panel showing input parameters

Configuration Parameters

Parameter Description Default
API_Key Your unique API key for authentication with the webhook service YOUR_API_KEY_HERE
DefaultVolume Default trade volume when not specified in the signal 0.1
MagicNumber Unique identifier for orders managed by this EA. Used to filter orders for closing and modification. 12345
PositionHandling
CLOSE_IN_PROFIT: Closes only profitable positions with same open currency name when a new same signal comes that in
CLOSE_OPPOSITE: Closes opposite position with same currency name when a new signal comes in for the same currency
NO_AUTO_CLOSE: No automatic position closing EA will accept all signals 		NO_AUTO_CLOSE
EnableAutoSymbolSelection When enabled, the EA will automatically detect the chart symbol instead of requiring attachment to all symbols true
With EnableAutoSymbolSelection enabled, you don't need to attach the EA to every chart. It will automatically process signals for any symbol received via webhook.

Key Features

API Key Authentication

Secure authentication using your unique API key to prevent unauthorized access to your trading account.

Magic Number Filtering

Use magic numbers to identify and manage specific groups of orders, making position handling more precise.

Flexible Position Handling

Choose how the EA handles opposite positions: close only if profitable, always close, or manual management.

Auto Symbol Selection

The EA automatically detects symbols from webhook signals, eliminating the need to attach it to every chart.

Pro Tip

Use TradingView's built-in variables like {{ticker}}, {{close}}, and {{interval}} to make your alerts dynamic and responsive to market conditions.
